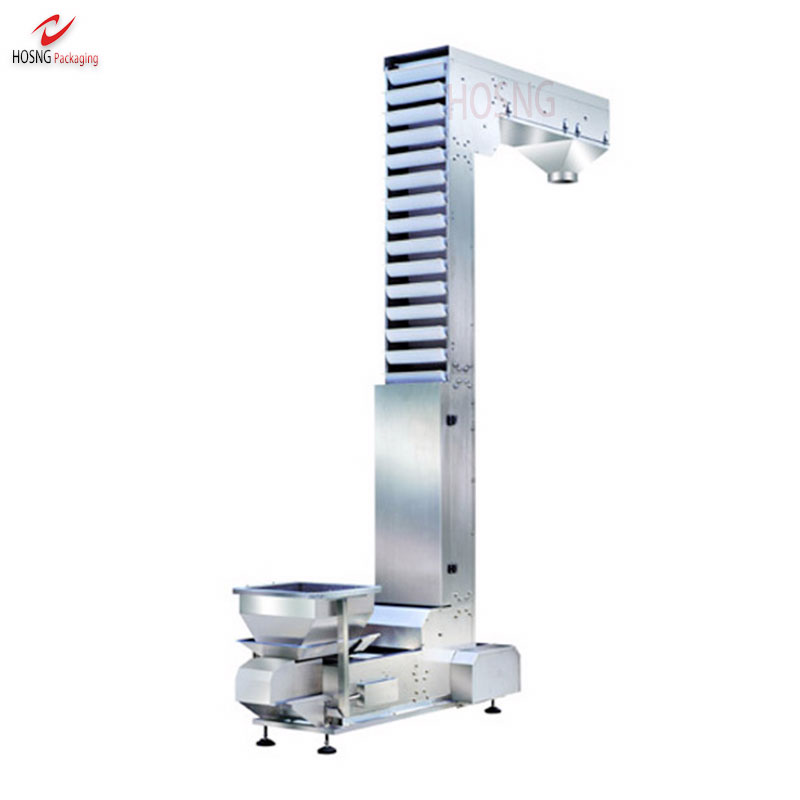

Z Type Bucket Conveyor Automatic Packaging Machine

Z Type Bucket Conveyor Automatic Packaging Machine
Main Features of the elevator:

l Applicable for vertical feeding of granule or small block material
l All products contact-parts are food-grade ABS buckets for sanitary usage.
l Speed is adjusted by frequency automatic packaging machine
l Adjustable feeding vibrator rates for various flowing suitable products
l With automatic chain tension device and built-in overload protection
l Material-Level sensor to activate automatically when integrated with other machines
l Quick-release mechanism to facilitate the fast installation or removal
l Easy access for cleaning
l 304# stainless steel version option for harsh environments.
l Customized-discharge height designs

Technical Parameters

Discharge height	2 to 8m (To be customized refer to the requirements)
Power	750W (3.1m)
Capacity	2.5 to 8CBM/hr
Electric Supply	380V,50/60Hz, 3ph or 220V, 50/60Hz,1 ph
Conveyor Frame	Painted Mild Steel or Full 304# Stainless Steel
