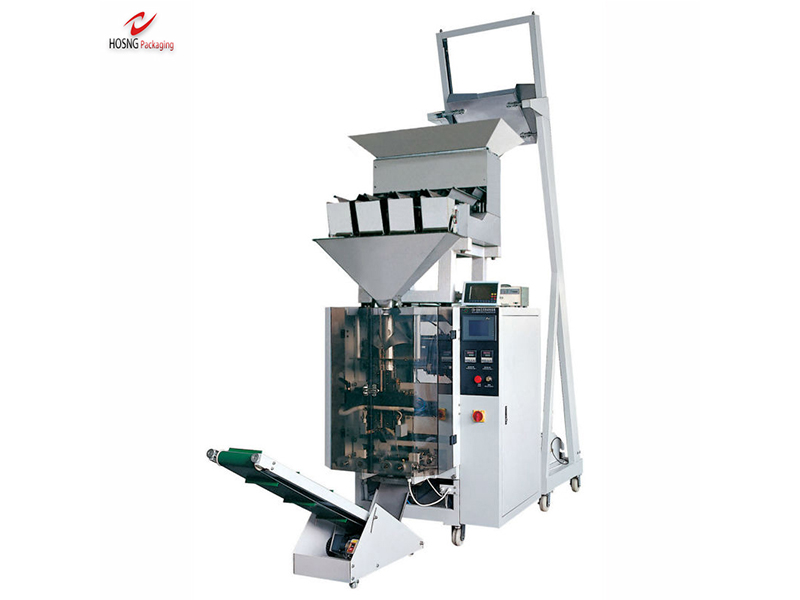

Puffy Food Granule Packaging Machine
Puffy Food Granule Packaging Machine
Puffy Food Granule Packaging Machine
We support complete sets or accessories for sale, welcome inquiry
We support complete sets or accessories for sale, welcome inquiry
| Technical Parameter | |||||
| Model | 320A | 398A | 420A | 520A | |
| Packing zize | W:50-150mm | W:70-200mm | W:80-200mm | W:90-250mm | |
| L:50-200mm | L:50-300mm | L:50-300mm | L:80-350mm | ||
| Packing speed | 20-60bags/min | 10-60bags/min | 15-80bags/min | 30-80bags/min | |
| Range of measuring | 700ml | 150-1500ml | 150-1500ml | Max 1500ml | |
| The max width of packing film | 320mm | 420mm | 420mm | 520mm | |
| Air consumption | 300L/min 0.6MPa | 400L/min 0.6MPa | 400L/min 0.6MPa | 500L/min 0.6MPa | |
| Main power/voltage | 2.7kW/220V 50-60Hz | 2.5kW/220V 50-60Hz | 2.2kW/220V 50-60Hz | 2.7kW/220V 50-60Hz | |
| The weight of main machine | 350Kg | 450Kg | 450Kg | 450Kg | |
| Dimension | （L）1100*(W)800*(H)1940mm | （L）1400*(W)970*(H)1700mm | （L）110*(W)800*(H)1940mm | （L）1480*(W)1200*(H)1700mm | |
| Film thickness | 0.04-0.10mm | ||||

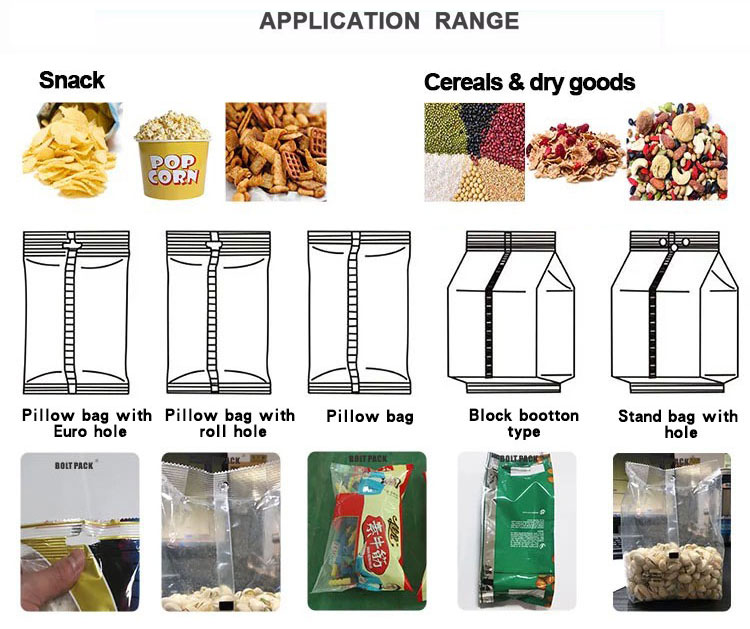

| Bag making mode | Pillow-type bag, Standing bag, punching device,Link-bag device | ||||
| Film material suggestion | POPP/CPP,POPP/VMCPP,BOBB/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET | ||||
